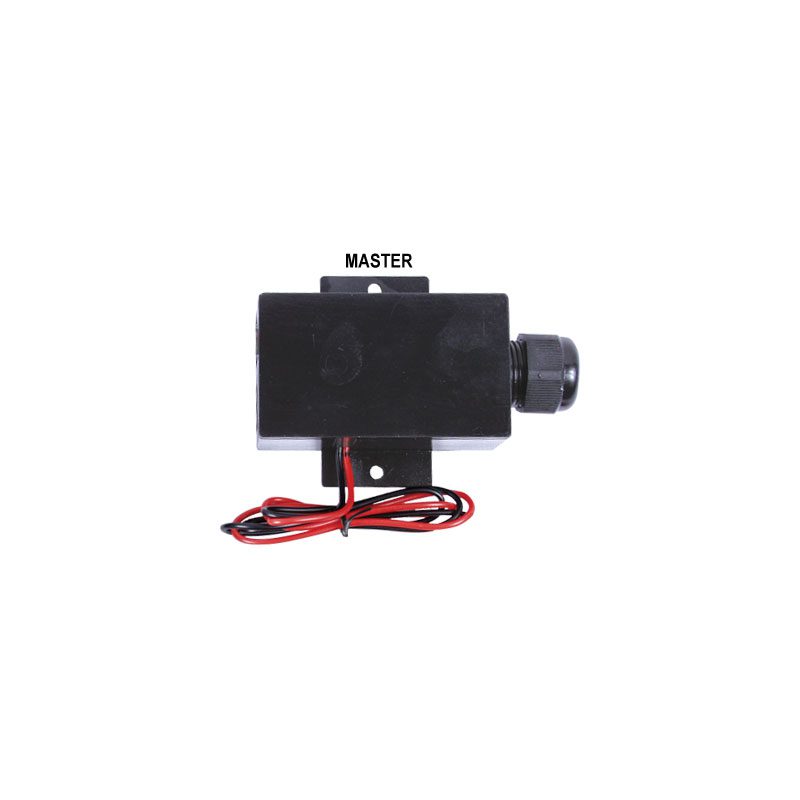

Linking Box Amped LED Illuminator Master Box

The LED Linking Box Illuminator system offers a way to daisy chain illuminator boxes throughout the vehicle, eliminating the need to run long strands of fiber optic cable, for a synchronized lighting effect using low amperage, super-bright amped LEDs. Works with either end-point or side glow fiber. Connect up to 6 linked box remote units to the master unit for multiple sources of synchronized lighting. Uses modular cables and polarity-protected power wires for fast, trouble-free installation.

Now featuring NEW AMPED VERSION! Amplified with 25% more light for even stronger illumination. Built like the original Linked Box Master, now using SUPER BRIGHT LEDs.

• Specifications: 12VDC, Reverse polarity protected; 2 wire hook-up.
• Size: 2-1/8" W x (3-1/2" W with brackets) x 6" L x 2-1/16" H
• 1" port
• .7 amps
• Offers multiple adjustable lighting patterns, including color wheel phasing
• Compatible with both end-point and side glow fiber optic cable (end-point fiber may experience some color variation)
• Run up to 6 remote boxes from the master box for a synchronized light show using the remote switch control
• Variety of "daisy chain" link cable lengths available
• Mounts with 4 screws into brackets
• SOLD INDIVIDUALLY
• Download Specification Installation Instructions
