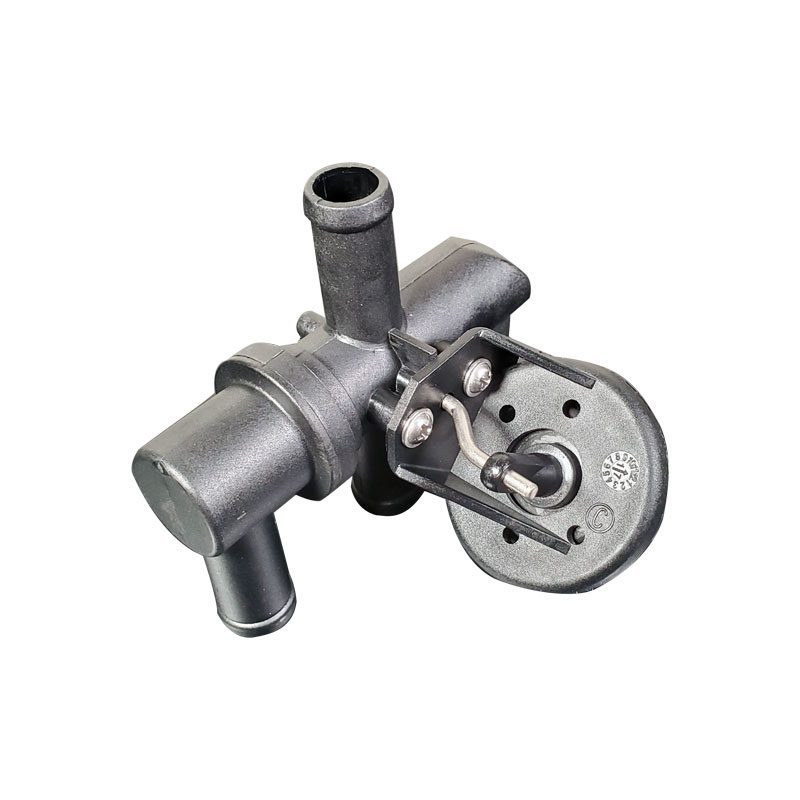

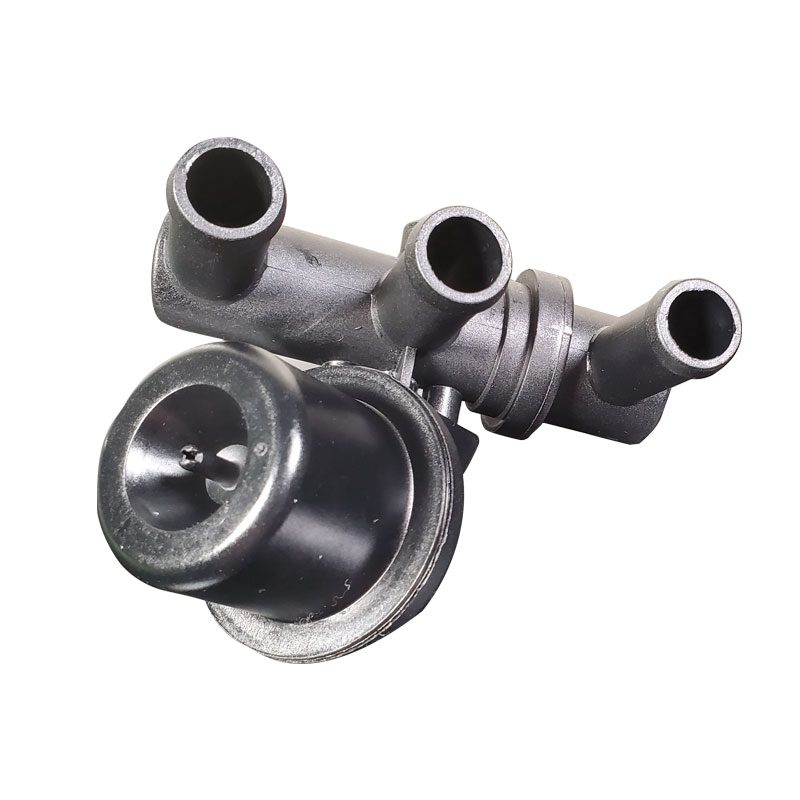

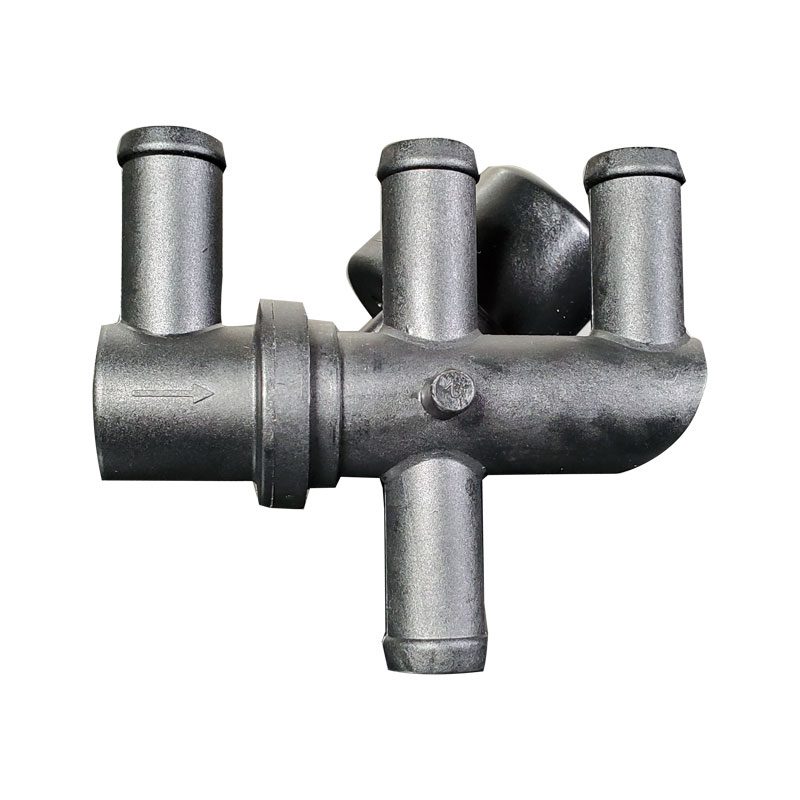

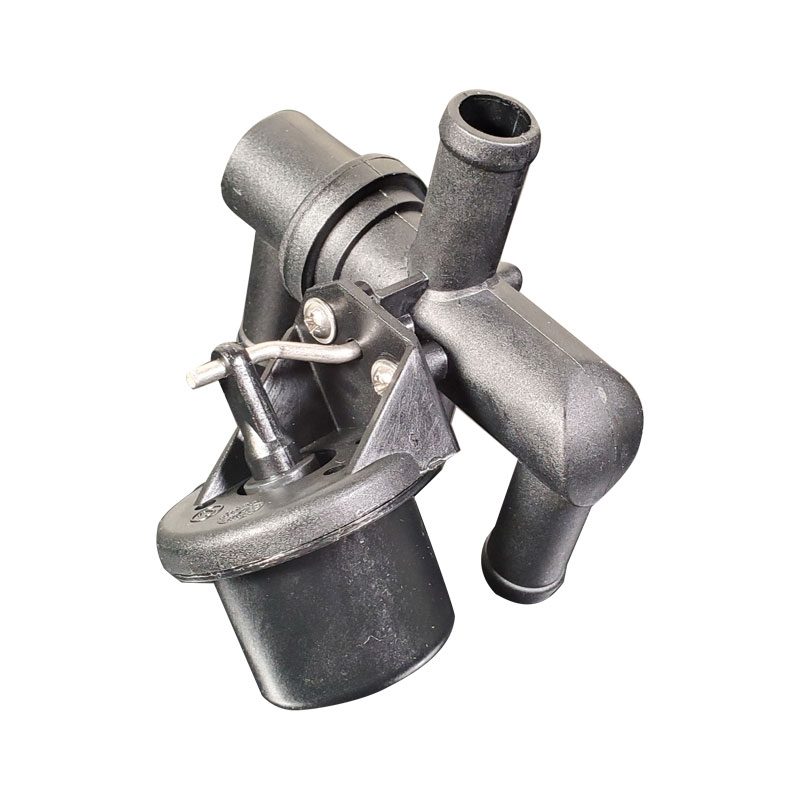

Bypass Vacuum Control Valve

$29.73

CALL US FOR VOLUME PRICING.

PART#: AC1019

Description

Water flows through the valve in its normally closed position. When vacuum is applied the flow is redirected to flowing through the heater core.

  • 4-Port: Four 5/8″ (16mm) Hose Connections- 1 left and 3 right
  • Flow: 6 GPM (23L/min) Nominal
  • Vacuum Actuator: 6.2-10 inHG
  • Meets OEM factory Specifications
  • 28 PSI
  • Replaces MX Systems/Manex #22-00067

Note: Do not twist to change orientation. Broken seal voids all warranties.



Additional information

Weight 0.1 lbs
Dimensions 4 × 4 × 4 in
